BYD BATTERY-BOX PREMIUM HVM Storage 22.1 kWh
Lithium Iron Phosphate Battery€ 5,199
Free Shipping
Capable of High-Powered Emergency-Backup and Off-Grid Functionality.
Highest Efficiency Thanks to a Real High-Voltage Series Connection.

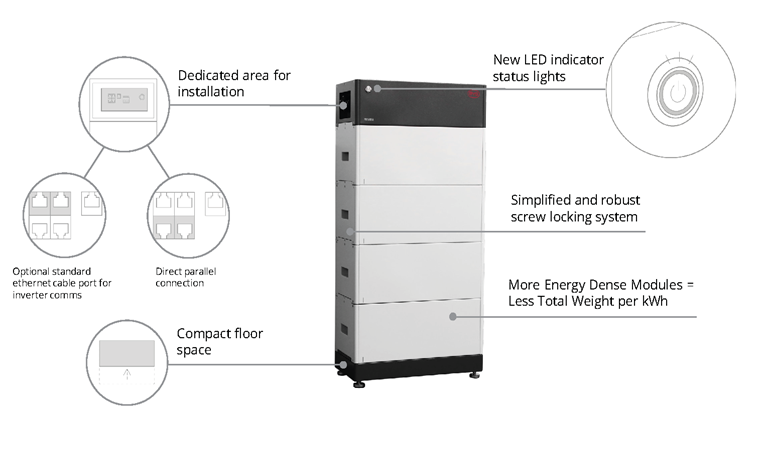

The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use.
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power.
Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters.
Two Distinct Modules to Cover the Complete Range of System Sizes.
Highest Safety Standards like VDE 2510-50.

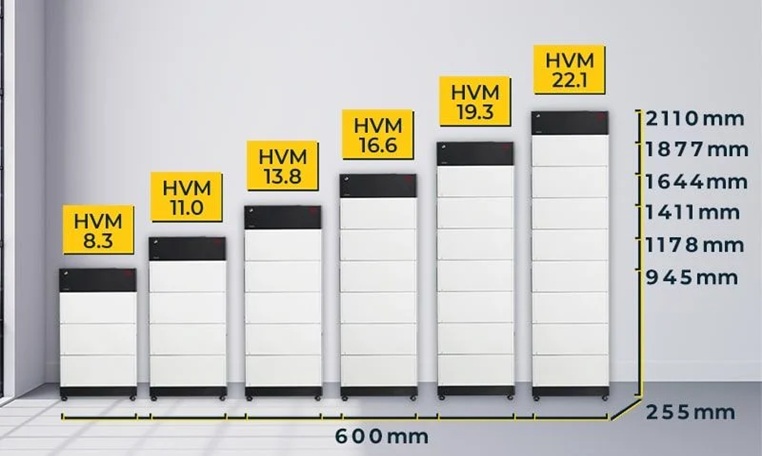

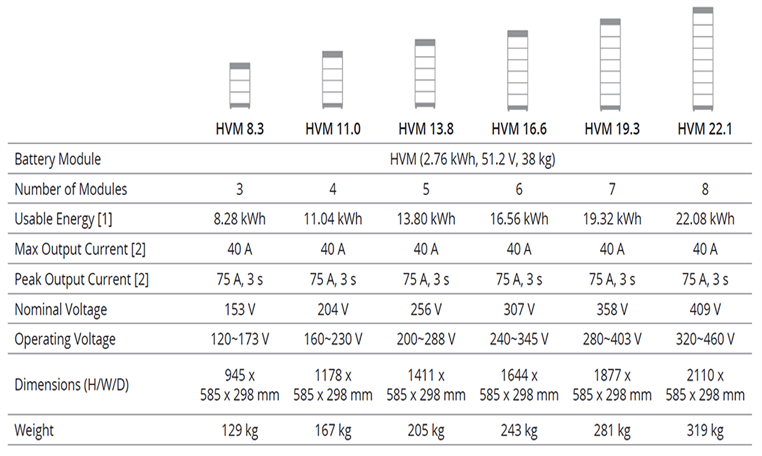

One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh.
Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh.
Ability to scale by adding HVM modules or parallel HVM stacks later.
What you receive:
- BMS (x1).
- Ground Base (x1)
- HVM battery module 2.76 kWh (x8)
- User Manual
- Modular Design
- BMS
- IP55
- Battery Protection type
- AC short-circuit protection
- Easy to install
- Cables free
- Simply design
- Simply expand
- Award-winning efficiency
- LED
- Off-grid
- Compatible with leading 1 and 3 phase inverters
- Highest safety standards
- Scalable Battery from 5.1 to 66.2 kWh
- Cobalt Free
| BYD Premium HVM 22.08 kWh | |
|---|---|
| Manufacturer | BYD |
| Model | Premium HVM |

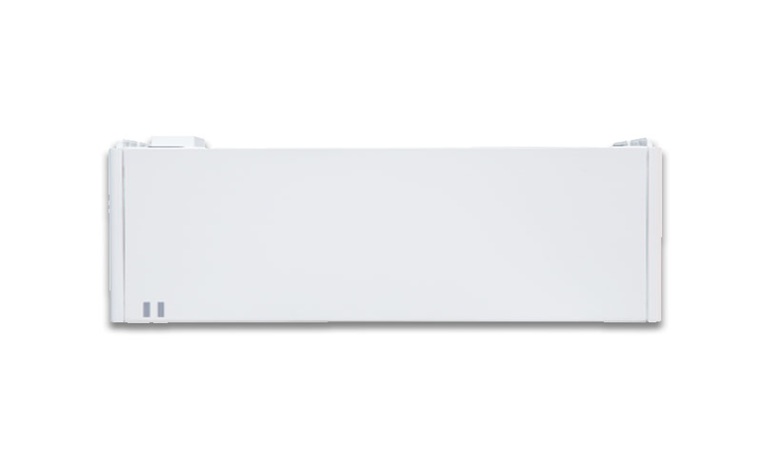

| Battery module | HVM (2.76 kWh, 51.2 V, 38 kg) |
| Cell technology | Lithium iron phosphate battery (cobalt-free) |
| Number of battery module | 8 |
| Usable capacity | 22.08 kWh |
| Max. output current | 50A |
| Peak output current | 75 A, 3 s |
| Rated voltage | 409.6V |
| Voltage range | 320~472V |
| Interfaces | CAN/RS485 |
| Ambient temperature | -10 to 50 °C |
| Protection class | IP55 |
| Battery efficiency | ≥96% |
| Application | ON Grid / ON Grid + Backup / OFF Grid |
| Dimensions | 2160 x 585 x 298 mm |
| Certifications | VDE2510-50 / IEC62619 / CEC / CE / UN38.3 |
| Weight | 319kg |
| Warranty | 10 Years |
Help us help you! By choosing to pay with Bitcoin, you can enjoy a 20% discount on our products. Inflation has driven prices up, and although the Crypto market can be volatile, this direct payment method benefits us both. Pay less, and support our move towards a more stable pricing model with Bitcoin.
The prices displayed already include a 20% discount. We understand that not all of our customers are familiar with paying in Bitcoin, and we're happy to guide you through the process if needed.
If, for any reason, you're not comfortable using Bitcoin, we also accept bank transfers as an alternative payment method. Please note that the 20% discount does not apply to bank transfers, and prices will be 25% higher than those shown.
| MANUFACTURER: | BYD |
| MODEL: | Premium HVM |
| CELL TECHNOLOGY: | LiFePO4 |
| USABLE CAPACITY: | 22.08 kWh |
| BATTERY MODULES: | 8 |
| MODULE CAPACITY: | 2.76 kWh |
| INTERFACES: | CAN/RS485 |
| DIMENSIONS: | 2160 x 585 x 298 mm |
| WEIGHT: | 319KG |
| Application: | ON Grid |
| Application: | ON Grid + Backup |
| Application: | OFF Grid |
| PROTECTION CLASS: | IP55 |
| CONDITION: | Brand New |
| WARRANTY: | 10 years |
Efficiency Rating
- Real96%
- Max. 99%
The efficiency of charging and discharging batteries can be affected by the inverter used (for conversion between DC and AC) and temperature impacts battery performance.
