Kit JA Solar Deep Blue 3.0 11kw + Kit Growatt 15.3kWh
Growatt SPH 10000TL3 BH-UP + 22 x Solar Panel 500W Deep Blue 3.0 JA Solar + 6 x Growatt - ARK 2.5H Batteries€ 5,399
Free Shipping
Installed photovoltaic solar power: 11,000 W.
Daily production in WINTER: 33.00 kWh.
Daily production in SUMMER: 77.00 kWh
AVERAGE annual daily production: 55.00 kWh
Growatt modular energy storage system with 15.3kWh storage capacity based on the ARK-2.5 A1 high-voltage battery for your efficient energy storage solution.

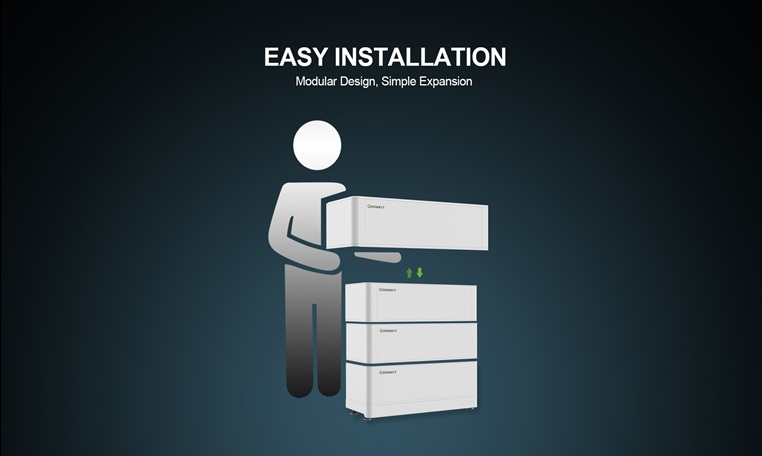

The Growatt ARK high-voltage energy storage system has a modular design and can be used universally and expanded as required depending on the application requirements (photovoltaic systems and island systems, emergency power supply, uninterruptible power supplies (UPS). The basis of the ARK energy storage system is the cobalt-free, low-maintenance lithium iron phosphate battery LiFePO4, which is characterized by a long service life, operational reliability and charge and discharge cycles. The modular battery system of the ARK series is characterized by precise construction and the highest quality design to ensure maximum performance, efficiency and longevity.

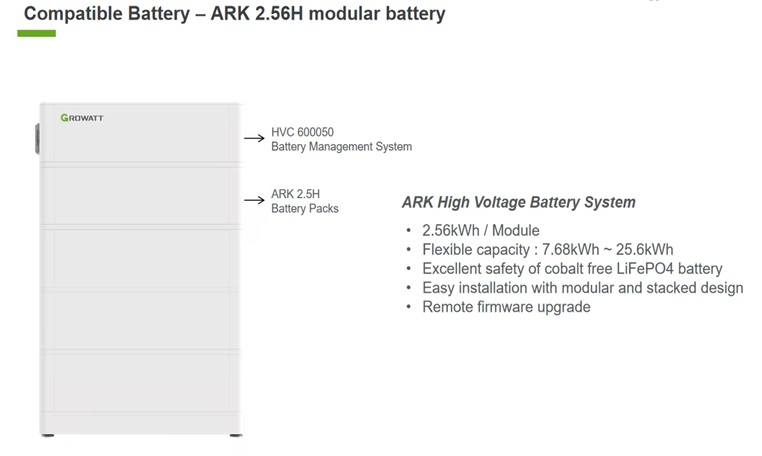

The storage capacity of the ARK high-voltage storage system is scalable from 5.12 kWh to 25.60 kWh. With the MIN-XH hybrid inverter, a storage capacity of 5.12 kWh (ARK 5.1 XH with 2 batteries) to 17.92 kWh with a maximum of 7 batteries can be achieved. When using the SPH series inverter, a storage capacity of 7.68 kWh (ARK 7.6H with 3 batteries) to 25.60 kWh with a maximum of 10 batteries can be achieved.
Maximize your own consumption and use your self-generated and stored energy with a versatile and long-lasting high-voltage battery for your home system.

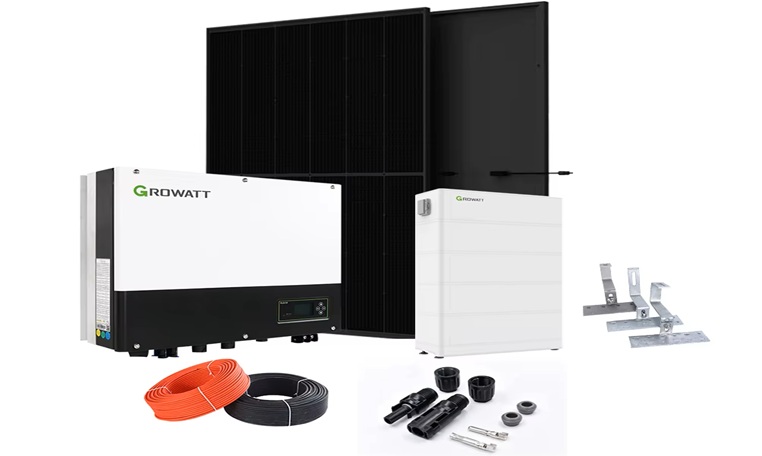

What you receive:
- 6x Growatt -ARK 2.5H A1 high voltage battery module (ARK 15.3kWh).
- 1x Growatt -ARK HV-Battery Management System (BMS).
- 1x Growatt ARK-2.5H-A1 ground base for high-voltage batteries.
- 1x Growatt ARK-2.5H-A1 connection cable.

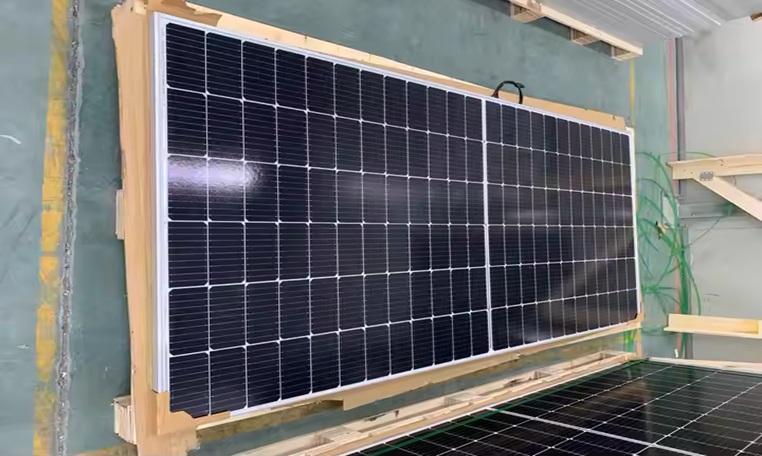

- 22 x Solar Panel 500W Deep Blue 3.0 JA Solar.
- 2 x Structure 6 Panels 30-45mm Coplanar Falcat.
- 2 x Structure 5 Panels 30-45mm Coplanar Falcat.
- 3 x Falcat Universal Joining Kit up to 45mm.
- 1 x Growatt Shine-Link X Monitoring.
- 1 x Growatt SPH 10000TL3 BH-UP three-phase hybrid inverter.
- 1 x Growatt TPM three-phase wattmeter.
- 2 x 6mm2 H1Z2Z2-K 60m red Unifilar cable reel.
- 2 x single-core cable reel 6mm2 H1Z2Z2-K 60m black.
- 2 x WEIDMULLER PVStick connectors.
- DC switch
- DC reverse polarity protection
- Google and IOS App
- IP65
- AC/DC surge protection/Type II
- Battery reverse protection
- AC short-circuit protection
- Ground fault monitoring
- Grid monitoring
- BMS
- Anti-islanding protection
- Residual-current monitoring unit
- Insulation resistance monitoring
- Display LCD+LED
- Interfaces RS232/RS485/CAN/USB
- 3-Phase
- Hybrid
| Kit Growatt ARK 15.3H | |
|---|---|
| Manufacturer | Growatt |
| Model | ARK 15.3H |
| Battery Capacity | 15.3kWh |
| Battery voltage range | 100~550V |
| Max. AC apparent power | 10000VA |
| Max. AC output power | 10000W |
| Max. output current | 15.2A |
| Nominal AC output voltage | 230V/400V |
| Nominal AC output frequency | 50/60HZ |
| THDv | Less 3% |
| Switch time | Less 0.5S |
| Type of battery | LiFePO4 |
| AC grid connection type | 3W+N+PE |
| Adjustable power factor | 0.8leading…0.8lagging |
| Efficiency | 98.2% |
| Inverter dimensions (W / H / D) | 505/453/198mm |
| Inverter Weight | 28kg |
| Battery Weight | 193,4kg |
| Battery dimensions (W / H / D) | 610/1370/250mm |
| Battery Warranty | 10 Years |
| Solar Panels Warranty | 25 Years |
| Inverter Warranty | 5 years / 10 years optional |
| Operating temperature range | -25 °C ... +60 °C |
Help us help you! By choosing to pay with Bitcoin, you can enjoy a 20% discount on our products. Inflation has driven prices up, and although the Crypto market can be volatile, this direct payment method benefits us both. Pay less, and support our move towards a more stable pricing model with Bitcoin.
The prices displayed already include a 20% discount. We understand that not all of our customers are familiar with paying in Bitcoin, and we're happy to guide you through the process if needed.
If, for any reason, you're not comfortable using Bitcoin, we also accept bank transfers as an alternative payment method. Please note that the 20% discount does not apply to bank transfers, and prices will be 25% higher than those shown.
| MANUFACTURER: | Growatt + JA Solar |
| MODEL: | ARK 15.3H + Deep Blue 3.0 |
| CELL TECHNOLOGY: | LiFePO4 |
| BATTERY CAPACITY: | 15.3kWh |
| PANELS POWER: | 11,000W |
| BATTERY: | 610mm x 1370mm x 198mm |
| PANELS WARRANTY: | 25 Years |
| INVERTER: | 505mm x 453mm x 198mm |
| IP RATING: | IP65 |
| BATTERY VOLTAGE: | 100~550V |
| INVERTER WEIGHT: | 28Kg |
| BATTERY WEIGHT: | 193,4Kg |
| BATTERY WARRANTY: | 10 Years |
| CONDITION: | Brand New |
| INVERTER WARRANTY: | 5 years / 10 years optional |
Efficiency Rating
- Real98%
- Max. 99%
The efficiency of charging and discharging batteries can be affected by the inverter used (for conversion between DC and AC) and temperature impacts battery performance.
